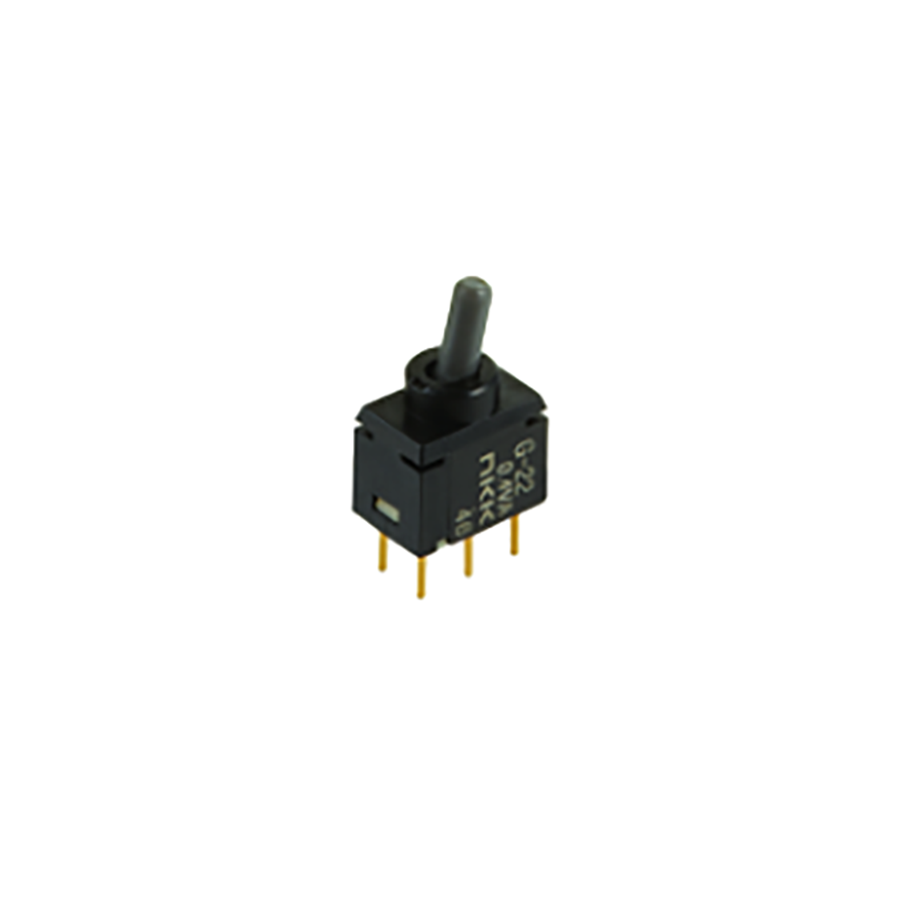

G22AP
Manufacturer:
NKK Switches
Mfr.Part #:
G22AP
Datasheet:
Description:
Toggle Switches Through Hole Current Rating:100 mA DPDT ON - ON Standard Round
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 28 V |
| Length | 7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 28 V |
| Number of Pins | 1 |
| Power Rating | 400 mW |
| Height | 7 mm |
| Circuit Type | DPDT |
| Packaging | Bulk |
| Depth | 4.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 28 V |
| Orientation | Vertical |
| Actuator Length | 3.8 mm |
| Throw Configuration | DPDT |
| Housing Material | Polyamide |
| Max Voltage Rating (AC) | 28 V |
| Switch Function | ON - ON |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 100 kcycles |
| Actuator Material | Glass, Glass fibre, Nylon, Polyamide |
| Contact Current Rating | 100 mA |
| Actuator Type | Standard Round |
| Termination Style | PC Pin |
| Switching Voltage | 28 V |
Stock: 1326
Distributors
pcbx
pcbxUnit Price$5.03046
Ext.Price$5.03046
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.03046 | $5.03046 |
| 10 | $4.33979 | $43.39790 |
| 25 | $4.09256 | $102.31400 |
| 50 | $3.91435 | $195.71750 |
| 100 | $3.74378 | $374.37800 |
| 300 | $3.55447 | $1066.34100 |
| 500 | $3.37474 | $1687.37000 |
| 1000 | $3.22679 | $3226.79000 |
